Designed for use in a nail gun, American Industrial Company manufactured the upper yoke shown here for a customer in the power tool industry. To produce the part, our die engineers designed a multi-station progressive die for use on our straight-side press. They created intricate features, including complex over forms and shear forms, to reproduce the precise geometry accurately and repeatedly over a 10,000 unit production run.

Constructed from heat- and corrosion-resistant tempered stainless steel, this component featured dimensions of 6.469” in length x 1.53” in height. Our high capacity equipment, outfitted with in-process measuring devices, ensured we met the .010” tolerance requirement. We gave the parts a tumbled finish to deburr and brighten the surface before packaging and shipping to the customer. The project was completed within a one week timeframe to meet the customer’s delivery requirements.

To learn more about this project, or to discuss how our ISO 9001 certified stamping services can benefit your next project, contact us today.

Power Tool Industry Yoke

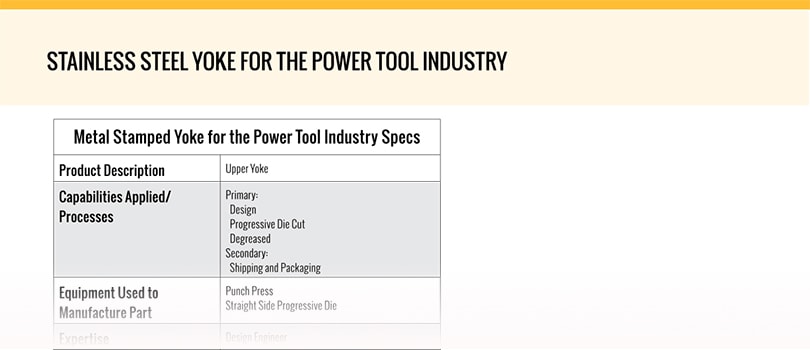

Metal Stamped Yoke for the Power Tool Industry Specs



View Metal Stamped Yoke for the Power Tool Industry Specs
